Brass Bent And Pin-Up Arms

This page was last updated: February 12, 2020

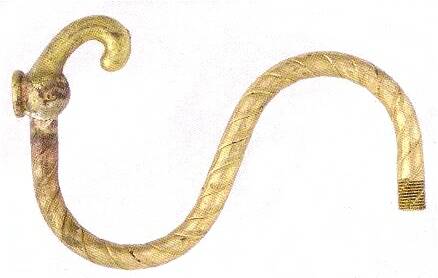

BRASS ROPE "S" ARM

Threaded 1/8 IPS (O.D. 3/8")

Threaded 1/2" Each End

Width 5" • Height 3-1/2"

With Scroll

D02-1-184AL        Antiqued and Lacq

D02-1-184BL        Brushed and Lacq

D02-1-184PL        Polished and Lacq

D02-1-184SL        Satin and Lacq

D02-1-184            Unfinished

Without Scroll

D02-1-183AL        Antiqued and Lacq

D02-1-183BL        Brushed and Lacq

D02-1-183PL        Polished and Lacq

D02-1-183SL        Satin and Lacq

D02-1-183            Unfinished

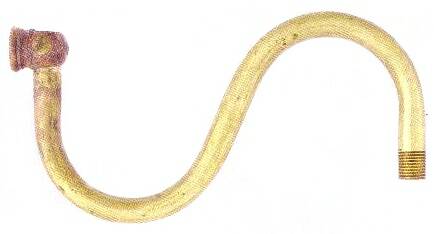

BRASS "S" ARM

Threaded 1/8 IPS (O.D. 3/8")

Threaded 1/2" Each End

Width 5" • Height 3-1/2"

With Arm Back

D02-A190AL        Antiqued and Lacq

D02-A190BL        Brushed and Lacq

D02-A190PL        Polished and Lacq

D02-A190SL        Satin and Lacq

D02-A190            Unfinished

Without Arm Back

D02-1-189AL        Antiqued and Lacq

D02-1-189BL        Brushed and Lacq

D02-1-189PL        Polished and Lacq

D02-1-189SL        Satin and Lacq

D02-1-189            Unfinished

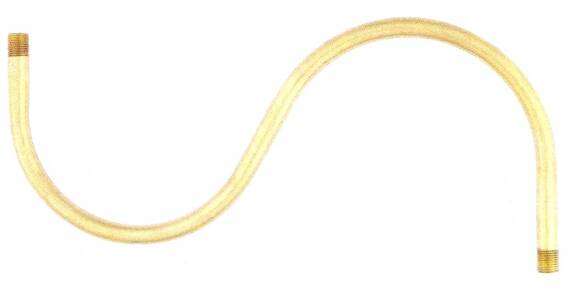

BRASS "S" ARM

Threaded 1/8 IPS (O.D. 3/8")

Threaded 1/2" Each End

Width 9-1/2" • Height 4"

D02-1-188AL        Antiqued and Lacq

D02-1-188BL        Brushed and Lacq

D02-1-188PL        Polished and Lacq

D02-1-188SL        Satin and Lacq

D02-1-188            Unfinished

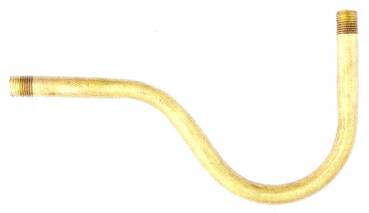

BRASS PIN-UP ARM

Threaded 1/8 IPS (O.D. 3/8")

Threaded 1/2" Each End

Width 6" • Height 3"

D02-1-186AL        Antiqued and Lacq

D02-1-186BL        Brushed and Lacq

D02-1-186PL        Polished and Lacq

D02-1-186SL        Satin and Lacq

D02-1-186            Unfinished

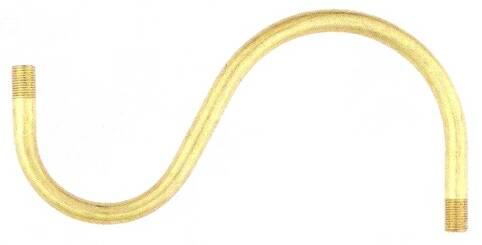

BRASS "S" ARM

Threaded 1/8 IPS (O.D. 3/8")

Threaded 1/2" Each End

Width 7-1/4" • Height 3-1/4"

D02-1-221AL        Antiqued and Lacq

D02-1-221BL        Brushed and Lacq

D02-1-221PL        Polished and Lacq

D02-1-221SL        Satin and Lacq

D02-1-221            Unfinished

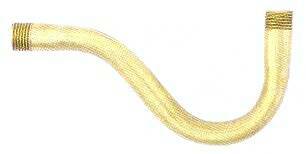

BRASS PIN-UP ARM

Threaded 1/8 IPS (O.D. 3/8")

Threaded 1/2" Each End

Width 3-5/8" • Height 1-3/4"

DR-A185

D02-1-185AL        Antiqued and Lacq

D02-1-185BL        Brushed and Lacq

D02-1-185PL        Polished and Lacq

D02-1-185SL        Satin and Lacq

D02-1-185            Unfinished

TO TOP OF PAGE

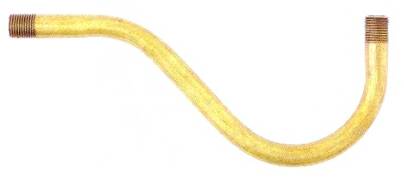

BRASS PIN-UP ARM

Threaded 1/8 IPS (O.D. 3/8")

Threaded 1/2" Each End

Width 5-3/4" • Height 2-1/4"

DR-A220

D02-1-220AL        Antiqued and Lacq

D02-1-220BL        Brushed and Lacq

D02-1-220PL        Polished and Lacq

D02-1-220SL        Satin and Lacq

D02-1-220            Unfinished

Typical length of thread each end: 3/8"- 1/2". Thread is included in sizes .

Last Page     Next Page

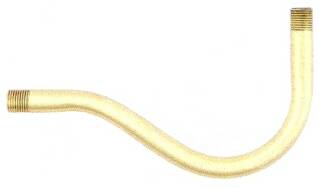

BRASS PIN-UP ARM

Threaded 1/8 IPS (O.D. 3/8")

Threaded 1/2" Each End

2 3/4" Height, 5" Width

D02-1-179AL        Antiqued and Lacq

D02-1-179BL        Brushed and Lacq

D02-1-179PL        Polished and Lacq

D02-1-180            Satin and Lacq

D02-1-179            Unfinished

Other sizes may be avaliable!!!

Arms or stems to your specifications. Send us a diagram with the bends and/or threading desired!

Minimum 50 Pieces

Typical length of thread each end: 3/8"- 1/2". Thread is included in sizes .
