Switches  Rocker
This page was last updated: August 16, 2017
SINGLE CIRCUIT LOW VOLTAGE
ROCKER SWITCH
Black Body With Black Rocker
Primarily used for Halogen Table Lamps
Rated 10A-125V, 6A-250V

D02-4-2572
HI/LO ROCKER SWITCH
Black Body With Black Rocker
Primarily used for Halogen Table Lamps
Rated 10A-125V, 6A-250V

D02-4-2570
Page
H059
Best if viewed with 1024 resolution!!!!
TWO CIRCUIT HI/LOW
Rotary Switch w/Diode
Rated: 6A-125V,3-A 250V
Brass Knob–3/8”Bushing
6”AWM 105°C Leads Strip 3/4”

S05-8A1140

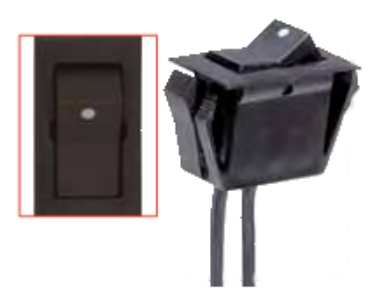

Rocker Switch On–Off
Rated: 15A-125V,10-A 250V 6”AWM 105°C Leads Strip 3/4”

6”AWM 105°C
S05-8A1141  Black with Dot
S05-8A1617  White with Dot

Lighted
6”AWM 105°C
S05-8A1819  Black with Dot
S05-8A1820  White with Dot
Round Black Hi-Low Rocker Switch Sequence: Hi-Low
Rated: 6A-125V,3A 250V 6”AWM 105°C Leads Strip 3/4”

S05-8A1371
S05-80-1371 and S05-80-1140 above are 2 wire single circuit there is a diode connect to the blue and red wire which provide a high/low function! They are 2 circuit switches but are wired to work as a single circuit switch
HI-LOW SWITCH
Low Position is 50% Power
Center shank is Threaded 1/8 IPS
5" Leads • Plastic Knob
Rated 500W-120V

D02-4-3749Vacuum Brass Plated Knob
