Medium Base Porcelain Sockets
This page was last updated: August 5, 2017
Medium Base Glazed Porcelain Socket
Copper-Alloy
Nickel Plated Screw Shell
150 Degree Leads
Rated 660 Watts - 250 Volts

1/8IP Light Duty Metal Cap
D02-4-760                      9" Leads
D02-4-761                    18" Leads
S05-8A1315                 24" Leads
S05-8A1278                 30" Leads
S05-8A1316                 36" Leads

With Ground Lead
M02-11-10088-8F-SP     9"   Leads
S05-8A1202                     61" Leads

1/4IP Light Duty Metal Cap
S05-8A1113                 20" Leads
Medium Base Glazed Porcelain Socket
Copper-Alloy
Nickel Plated Screw Shell
2 Screw Terminals
1/8IP Light Duty Metal Cap
Two Captive Screws #6-32
Rated 660 Watts - 250 Volts

D02-4-73                Socket only
D02-4-74               With heavy Duty
                              Metal Cap 1/8IP
D02-4-76               With heavy Duty
                              Metal Cap 1/4IP
D02-4-77               With heavy Duty
                              Metal Cap 1/2IP
D02-4-73/560    With heavy Duty
                              Metal Cap 3/8IP
D02-4-7073          Socket only
                             (Leviton Brand)
D02-4-7074         With heavy Duty
                             Metal Cap 1/8IP
                            (Leviton Brand)
Medium Base Glazed Porcelain Socket
Copper-Alloy
Nickel Plated Screw Shell
Screw Terminals and Ground terminal
for 3 wire hook up
Rated 660 Watts - 250 Volts

D02-4-116      Socket only
D02-4-115      With heavy Duty
                      Metal Cap 1/8IP
D02-4-7116   Socket only
                     (Leviton Brand)
D02-4-7115   With heavy Duty
                      Metal Cap 1/8IP
                     (Leviton Brand)
Medium Base Glazed Porcelain Socket
Side Outlet
Copper-Alloy
Nickel Plated Screw Shell
With set screw
Bushing Extends 7/32" Beyond
Socket edge and Centers
7/16" Below Cap Surface
Rated 660 Watts - 250 Volts

Metal Cap Tapped 1/8IP
D02-4-114       Screw Terminals
D02-4-118        9" 150 Degree leads
S05-8A1445  12" 105 Degree leads

Metal Cap Tapped 1/4P
K02-D0841     Screw Terminals
Page
H015
Best if viewed with 1024 resolution!!!!
See Page H018 for KV Rated Medium Base Sockets
Medium Base Beaded Body Porcelain Socket With Flange
Copper-Alloy Nickel Plated Screw Shell
2 Screw Terminals 1 5/8" Overall Diameter
1/8IP Light Duty Metal Cap
Two Captive Screws #6-32
Rated 660 Watts - 250 Volts

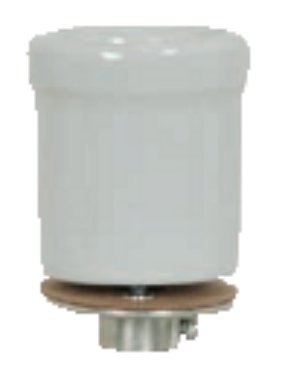

S05-8A1682

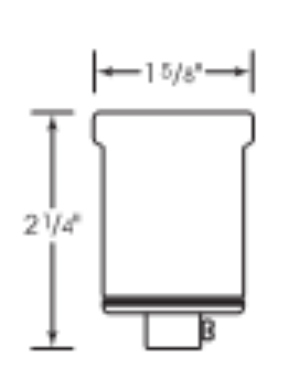

S05-8A1682Drawing
Medium Base Glazed Porcelain Socket
Copper-Alloy
Nickel Plated Screw Shell
Rated 660 Watts - 250 Volts
1/8IP Light Duty Metal Cap
  48" SPT-1 Clear Gold with ground

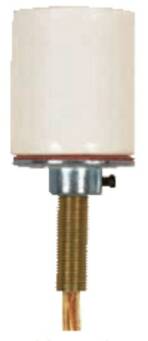

S05-8A1150      With 1 1/4" long nipple

Other nipple lengths are available
